1.The installation way is in accordance with
the regulations of GB997'Codes of Motor Structure
Installation',IEC and DIN42673.

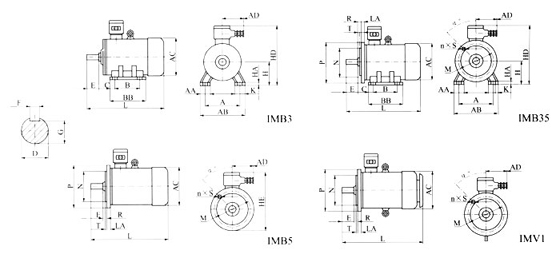

2.Three structures for this motor:
a:B3---the feet under machine base,no flange
on cover.
b:B5---no feet under machine base,the flange
on cover.
c:B35---the feet under machine base,the flange
on cover.
3.12 kinds of installation ways for the above-mentioned
3 structures for this motor. |
